EU&UL standard Auto AC Charging Gun Comprehensive Test System

MOQ:	1
fiyat:	pazarlık edilebilir
Standart ambalaj:	Kontrplak Kasa
teslim süresi:	40 gün
Ödeme yöntemi:	T/T
Tedarik kapasitesi:	Ayda 1 Takım

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri

Marka adı

Sinuo

Sertifika

Calibration Certificate (Cost Additional)

Model numarası

SNJ8163

Çoklu Standart:

Büyük Britanya, AB ve UL

tam otomasyon:

Bir döngü tüm testleri tamamlar

QR İzlenebilirliği:

Dahili tarayıcı test sonuçlarını ürün kimliğine bağlar

Geniş kapsam:

Tek/üç fazı destekler

Direnç Aralığı:

1 – 5000 Ω, Doğruluk: %1

Termistör Testi:

100 – 50.000 Ω, Doğruluk: %2

Vurgulamak:

EU UL standard AC charging gun tester

Auto charging gun test system

Electrical appliance testing equipment with warranty

Ürün Tanımı

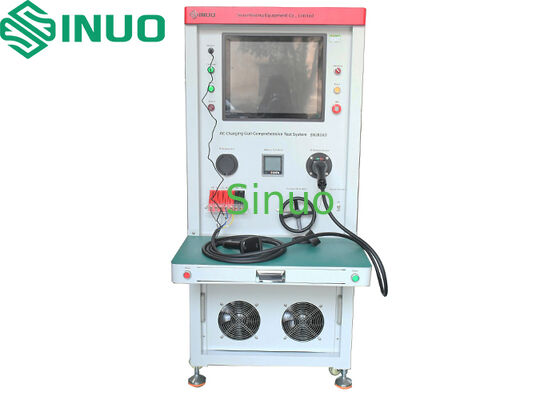

EU & UL Standard Auto AC Charging Gun Comprehensive Test System

This automated test system performs comprehensive functional testing of AC charging plugs and inlets compliant with GB (China), EU, and UL standards. Featuring QR code-based product identification, automatic data saving, and direct printing of qualified results, it enables full-test automation in a single cycle—significantly improving testing efficiency while reducing labor costs for high-volume manufacturing environments.

Key Testing Functions

Wire breakage, continuity, short circuit, and wiring sequence verification
Main conductor continuity resistance measurement
Built-in resistance measurement (with button pressed/unpressed states)
Current-carrying capacity and voltage drop analysis
Insulation resistance testing
Dielectric withstand (hipot) testing
Thermistor (temperature sensor) resistance measurement

Technical Specifications

Parameter	Details
Power Supply	Single-phase AC 220V / 50Hz
Air Supply	0.6 MPa
Control System	PLC + Industrial PC
Barcode/QR Code	Integrated scanner with test data traceability
Continuity & Wiring	PLC I/O scanning with auto pass/fail judgment
Built-in Resistance	Range: 1-5000 Ω, Accuracy: ±1%
CC & PE Resistance	Supports 16A/32A/63A AC plugs; accuracy: 1-2%
Thermistor Test	Range: 100-50,000 Ω, Accuracy: ±2%
Voltage Drop Test	Adjustable three-phase transformer: 0-380V, load 0-35A
Insulation Resistance	Test voltage: DC 100-1000V adjustable; lower limit: 1MΩ-1GΩ
Dielectric Strength	AC 0-5kV / DC 0-6kV; leakage current monitoring
Test Station	Single station, one product per test
Plug Holders	EU (vehicle & pedestal), GB, US AC holders
Socket Height	750-1000 mm, ergonomic design
Software	Windows 7/10 compatible with data export capabilities
Dimensions	W 900 × D 800 × H 1800 mm
Weight	Approx. 300 kg
Mobility	Lockable casters
MES Connectivity	Optional (additional cost)

System Advantages

• Fully automated testing process reduces manual intervention
• Supports multiple international standards (GB, EU, UL) in one system
• QR code-based traceability ensures complete test record linkage
• Modular test parameters and limit settings for flexible quality control
• Ready for factory integration with MES systems

Application: Ideal for EV charging cable and plug manufacturers requiring high-throughput, reliable, and traceable quality inspection for production line or incoming QC.
