IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus

MOQ:	1
fiyat:	pazarlık edilebilir
Standart ambalaj:	Kontrplak durumda
teslim süresi:	10 metre
Ödeme yöntemi:	T/T
Tedarik kapasitesi:	Ayda 10 Takım

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri

Marka adı

Sinuo

Sertifika

Calibration Certificate (Cost Additional)

Model numarası

SN773

Kontrol modu:

PLC'li dokunmatik ekran

zamanlama cihazı:

9999X0.1S

Yakıcı İç deliği:

φ0,5 mm ± 0,1 mm

Yakıcı dış çapı:

≤φ0,9 mm

Yanma açısı:

45 ° (test) veya dikey eğim

Sıcaklık Aralığı:

0~1000°C

Vurgulamak:

IEC60695-11-5 needle-flame test apparatus

fire hazard testing equipment

electrical appliance flame test device

Ürün Tanımı

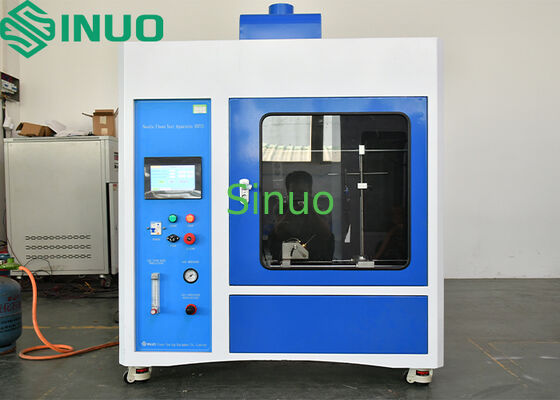

IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus

The Needle Flame Tester evaluates fire hazards in electrical equipment by simulating fault conditions that may cause internal flames. This apparatus assesses whether specimens ignite and measures combustion duration and spread.

Product Overview

This testing apparatus features a 0.9mm needle-shaped burner tilted at 45° and fueled by butane gas. It conforms to IEC60695-11-5 standards and is required by IEC60335-1 clause 30.2.3.2 and Annex E.

Key Features

PLC control system with 7-inch color touch screen interface
Precision flame control with adjustable height and temperature monitoring
Automatic test procedure control with independent air draft system
Stainless steel construction with 0.5 cubic meter workspace
Comprehensive timing and temperature measurement capabilities

Applications

Ideal for research, production, and quality testing departments in various industries including:

Lighting equipment and low-voltage apparatus
Household appliances and machine tool electrical components
Electric tools, motors, and electronic instruments
Electrical connectors and insulating materials
Engineering plastics and solid combustible materials

Technical Specifications

Parameter/Model	SN773
Working Voltage	AC 220V/50Hz
Control System	PLC
Display	7 inch color touch screen
Timing Device	9999×0.1S
Combustor	Stainless steel, inner bore φ0.5mm ± 0.1mm, OD ≤φ0.9mm, L ≥ 35mm
Combustion Angle	45° tilt (testing) or vertical (flame height adjustment)
Flame Height	12±1mm adjustable (with flame height gauge)
Gas Category	95% butane gas (bottled lighter gas compatible)
Temperature Range	0~1000℃
Flame Warming Requirement	100° to 700° within 23.5S±1S
Temperature Thermocouple	φ0.5 armor nickel-chromium/nickel aluminum wire K-Thermocouple
Workshop	0.5 cubic meter, stainless steel case, black background
Testing Process	Automatic control with independent air draft
Volume Size Adjustment	Flowmeter adjustment
Equipment Dimensions & Weight	1100mm × 550mm × 1100mm, 120kg
Conforms to Standards	IEC 60695-11-5, IEC60335-1, etc.

Included Accessories

White Pine Test Board
Five Sheets of Tissue Paper
Flame Height Gauge
