IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L

MOQ:	1
fiyat:	pazarlık edilebilir
Standart ambalaj:	Kontrplak durumda
teslim süresi:	10 metre
Ödeme yöntemi:	T/T
Tedarik kapasitesi:	Ayda 10 Takım

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri

Marka adı

Sinuo

Sertifika

Calibration Certificate (Cost Additional)

Model numarası

SN441-1000L

İnce toz:

75um veya daha az

Kaba toz:

150um veya daha az

Toz Konsantrasyonu:

2kg/m³

Hava akış ölçer:

1-20L/M

Pişirme Tozu Sıcaklığı:

RT+10°C~60°C

Talk Pudrası Dozu:

2~5kgm³

Vurgulamak:

IP5X/6X dust test chamber 1000L

IEC60529 sand test chamber

environmental test chamber with warranty

Ürün Tanımı

IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L

This equipment is designed for testing electrical and electronic products, automobile and motorcycle parts, and seals to evaluate their performance in sand and dust environments. The chamber simulates conditions that prevent sand and dust from entering seals and enclosures, testing product durability during use, storage, and transportation.

Product Applications

Testing electrical and electronic products in sand and dust environments
Evaluating automobile and motorcycle components and seals
Simulating natural and vehicle-induced sand and dust conditions
Assessing harmful effects of particle-laden airflow on electrical products

Technical Specifications

Chamber Dimensions

Parameter	Specification
Model	SN441-1000L
Working Size (mm)	L1000 × W1000 × H1000
Outer Size (mm)	L1450 × W1250 × H2200

Performance Parameters

Parameter	Specification
Baking Dust Temperature Range	RT+10℃～60℃
Fine Dust	75μm or less
Coarse Dust	150μm or less
Air Flow Velocity	Not greater than 2m/s
Dust Concentration	2kg/m³
Talcum Powder Dosage	2～5kg/m³
Dust Blowing Method	From top to bottom
Negative Pressure Difference Range	-10~0kPa (adjustable)
Metal Mesh Diameter	50μm
Nominal Spacing Between Lines	75μm or less than 150μm

Timing Controls

Control Type	Range
Shock Time	1s～99h (adjustable)
Test Time Timing	1s～99h (adjustable)
Dust Blowing Control Cycle	1s～99h (adjustable)
Vacuum Time	1s～99h (adjustable)

Construction & Materials

Inner Chamber Material: SUS201 stainless steel mirror panel
Outer Chamber Material: A3 iron plate with electrostatic spraying treatment
Structure Components: Test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen
Observation Window: 1 PC
Lighting Lamp: 1 PC
Load Bearing: 20kg

Electrical Specifications

Parameter	Specification
Power Supply	AC380V three-phase five-wire, 50Hz
Circuit Protection	32A air switch with terminal blocks
Power Cable	≥4 square meters
Power Consumption	3KW (no load)
Control System Sample Power Socket	Dust-proof socket AC220V 16A

Environmental Requirements

Operating Environment: Temperature (23±5)℃; Relative Humidity 25%～70%RH; Atmospheric Pressure 86～106kPa

Safety Features

Phase Sequence Protection
Leakage Protection

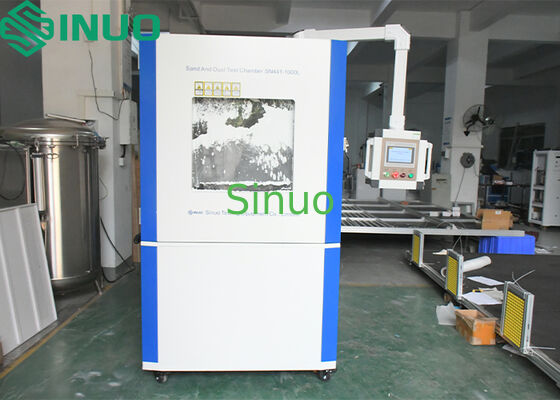

Chamber Images

Main Components List

No.	Component Name	Brand
1	Touch Screen Controller	MCGS
2	PLC	XINJE
3	AC Contactor	CHINT
4	Intermediate Relay	CHINT
5	Phase Sequence Protector	CHINT
6	Illuminated Button	ONPOW
7	Emergency Stop	ONPOW
8	Alarm	ONPOW
9	Circuit Breaker	CHINT
10	Flow Meter	Made in China
11	Mica Heating Plate	Customize
12	Digital Pressure Gauge	SMC
13	Transfer Switch	GELEI
14	Vortex Air Pump	JIUZHOU
15	Vibration Motor	RPM300
16	Smart Thermostat	DELTA
17	K2M Probe	KERUNMEI
18	Vacuum Mercury	FEIYUE
19	Dust Bag	Made in China
20	Dustproof Socket	Made in China
21	Dust Blowing Pipe	Customize

Included Accessories

Accessory Name	Quantity	Remark
Brush	1 PC
Window Dust Scraper	1 PC
Dustproof Socket	1 SET
Filter Element 5 inches	2 PCS

Compliance Standards: Designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and related standards.
