IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Ürünler

Elektrikli Aletler Test Cihazları

Enerji Verimliliği Laboratuvarı

Elektrik Laboratuvarı için Test Cihazları

Bizimle İletişim

Ms. Zoe Zou

sales@sinuotek.com

86-020-39185976

Şimdi iletişime geçin

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

MOQ:	1
fiyat:	Customized
Standart ambalaj:	Plywood Case
teslim süresi:	30 Days
Ödeme yöntemi:	T/T
Tedarik kapasitesi:	10 sets per month

Ayrıntılar Bilgi

Ürün Tanımı

Detay Bilgi

Place of Origin

China

Marka adı

Sinuo

Sertifika

Calibration Certificate(Cost Additional )

Model Number

SN2121-5

Flexing Angle:

0-180° (Presettable: ±30°, ±45°, ±60°, ±90°)

Flexing Speed:

0-60 cycles/min, presettable

Test Stations:

5 stations, synchronized

Test Count:

0-999999 cycles, presettable

Drive Method:

Servo motor + precision reduction gear

Control Method:

PLC control, touchscreen operation

Ürün Tanımı

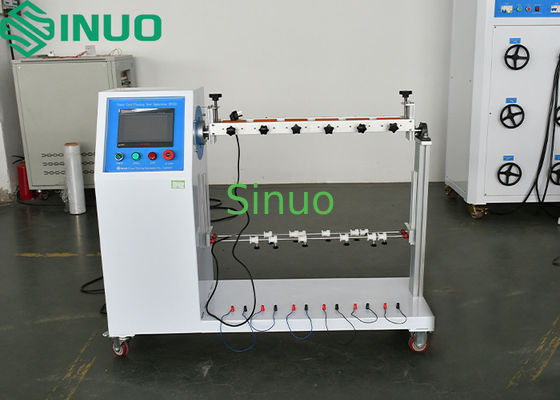

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Product information:

This device meets the standard of IEC60335-1:2004,IEC60335-2-2:2009,IEC60312-1:2010.It is used to assess the mechanical performance of vacuum cleaner hoses under left and right flexing.The device uses a motor-driven mechanism to perform reciprocating flexing oscillation testing of the current-carrying hose.

Samples and Limitations:

Vacuum cleaner hoses,Water-suction cleaning appliance hoses,Washing machine water hoses

Equipment Structure and Features:

The reduction motor controls the oscillating structure for reciprocating motion, with left and right flexing angles adjustable directly via the touchscreen. The machine stops automatically after reaching the preset test count.

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station 0

Technical parameters:

Operating Environment	Power supply: AC220V±10% / 50-60Hz Operating temperature: 0-40℃ Humidity: 30%-90%
Control Method	PLC control, touchscreen operation
Test Stations	5 stations, synchronized
Drive	Servo motor + precision reduction gear
Flexing Angle	0-180° (Presettable: ±30°, ±45°, ±60°, ±90°)
Flexing Direction Selection
Flexing Speed	0-60 cycles/min, presettable
Test Count	0-999999 cycles, presettable
Load Weights	10N, 20N
Equipment dimensions	approximately 1300×400×1550 (mm) (W×D×H)
Equipment weight	150kg

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station 5

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station 7
